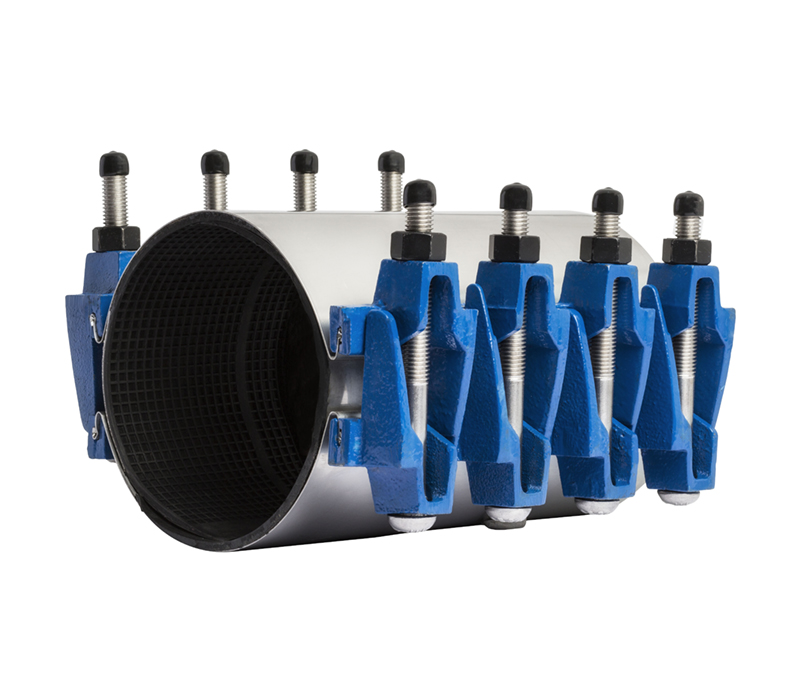

| Use: | To repair circumferential breaks, longitudinal ruptures by ground movements, holes, cracks and other type of damage. |
| Panel: | Type 304 (18-8) Stainless Steel per ASTM A240. |
| Gasket: | SBR Chek-O-Seal with multi o-ring sealing ribs from 100% new rubber to ensure performance under varying pressures with superior storage characte- ristics. Suitable for mild acids, water and salt media with a temperature range of -40 °F to +200 °F per ASTM D2000. Other materials available. |
| Armor Plate: | Type 304 (18-8) Stainless Steel per ASTM A240, recessed and bonded to the gasket. |
| Bolts & Nuts: | Type 304 (18-8) Stainless Steel per ASTM A193 and A194. NOTE: Hex nuts are furnished with fusion bonded coating to prevent seizing and/or galling |
| Lugs: | Ductile Iron per ASTM A536. |
| | MEETS AWWA C230. |
