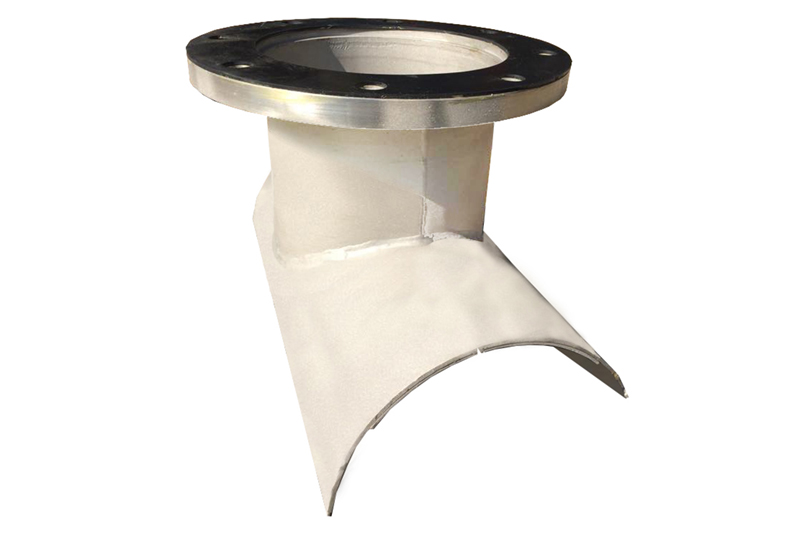

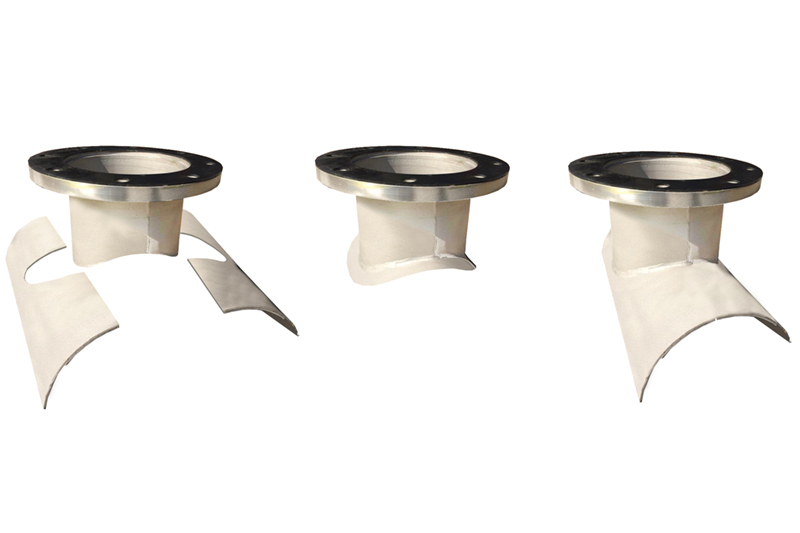

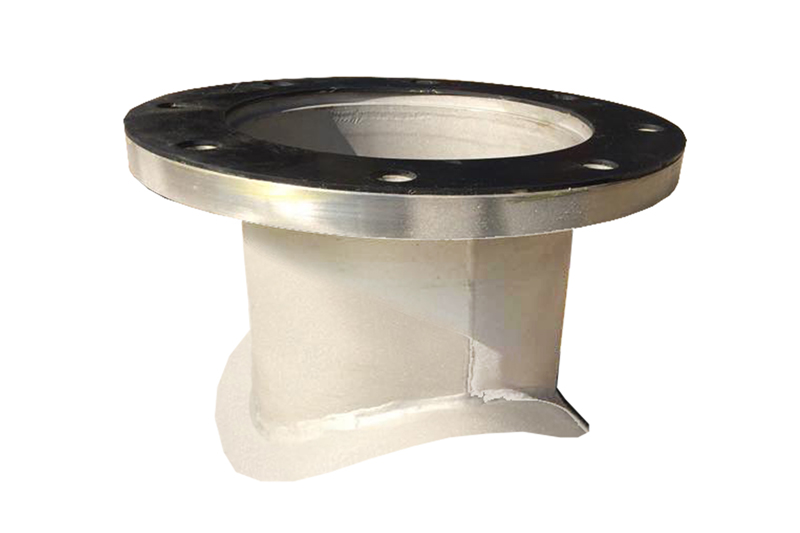

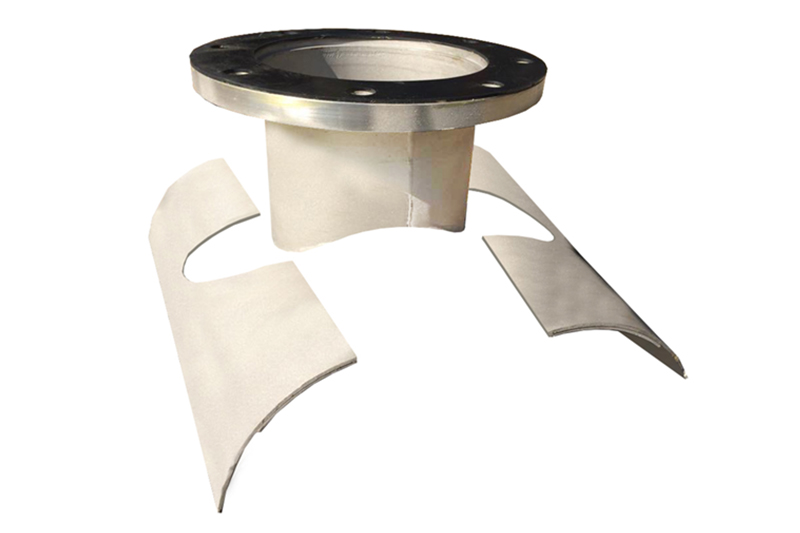

| Information: | Weld-on outlets are reliable, fast and affordable with PS Field Weld connections. |
| The complete Tapping Connection is constructed of Carbon Steel.
The branch shall be a minimum of 3/8" larger diameter than nominal to allow the use of a full size cutter. |
| The tapping connection shall meet or exceed all material specifications as listed below.
Branch to flange and branch to shell connections are double welded. Outer structural weld GMAW (mig) and inner fusion weld GTAW (tig). |
| There shall be no paper or plastic adhesive labels attached to the tapping sleeve, any information appearing on the sleeve shall be stenciled. |
| Flange Outlet | Material: Carbon Steel. AWWA C115 |
| Face Gasket | Material: SBR. AWWA C115AP |
| Branch | Material: Carbon Steel. ASTM A36 |
| Test Plug | Material: Stainless Steel. ANSI B2.1 |
| Shell | Material: Carbon Steel. ASTM A36 |
