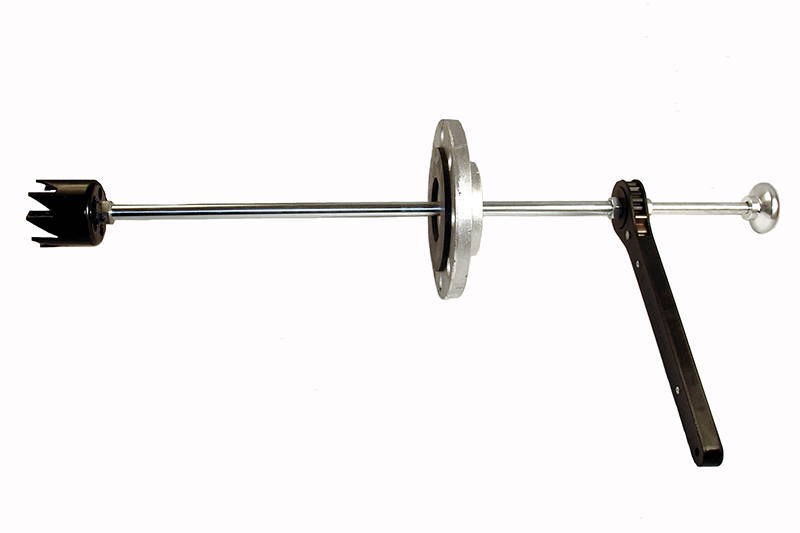

| Information: | * Complete units consist of Drill, Drive Mechanism, and type of Adapter specified. |

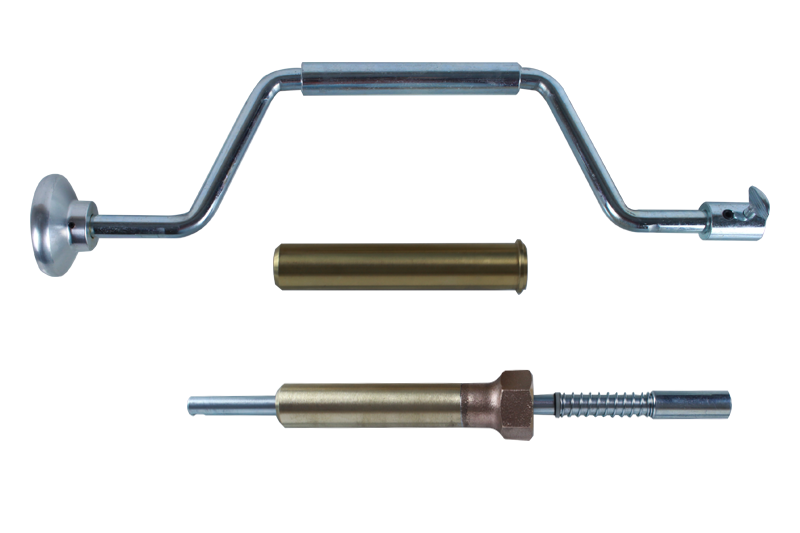

| | * The Vega Drill Speed Handle Drive Mechanism is available only on 3/4" and 1" units. |
| | * 3/4" and 1" Drive Mechanisms are interchangeable. |
| | * 1 1/2" thru 4" Drive Mechanisms are interchangeable. |
| | * 6" & 8" Drive Mechanisms are interchangeable. |
| | * The 1 1/2" and 2" units are furnished with Female Iron Pipe (FIP) threaded adapter unless otherwise specified. |
| | * 3" thru 8" units are furnished with "Pack-Off" plate style adapters that fit on both flanged and MJ fittings. |
| NOTE: | For 3/4” and 1” sizes Female Iron Pipe (FIP) or Male Iron Pipe (MIP) thread Flare bushing available. These bushings work in conjunction with the standard flare adapter, converting them from a flared copper thread to iron pipe thread. See parts page in adapters section. |
| Use of power drive tools voids all warranties! | |
