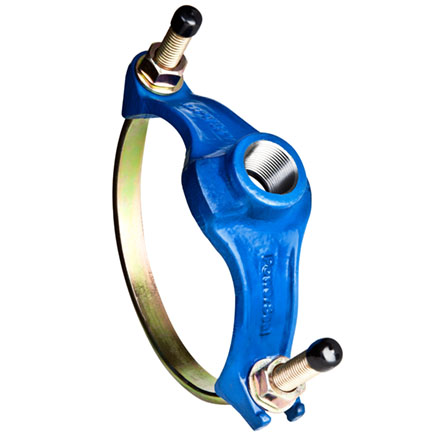

3411DI

Available Sizes

Nominal Pipe Size	Pipe OD Range	Outlet	Part Number
Inches	Inches	Outlet	Part Number

Nominal Pipe Size	Pipe OD Range	Outlet	Part Number
Inches	Inches	Outlet	Part Number

Nominal Pipe Size		Pipe OD Range		Outlet	Part Number	List Price
Inches	MM	Inches	MM	Outlet	Part Number	List Price
1	25	1.31 - 1.39	33 - 35	1/2 NPT	3411010005HO-DI	$46.00
				3/4 CC	3411010075HB-DI	$46.00
				3/4 NPT	3411010075HC-DI	$46.00
				1 CC	3411010100HD-DI	$46.00
				1 NPT	3411010100HE-DI	$46.00
1 1/4 - 1 1/2	32	1.61 - 1.92	41 - 49	1/2 NPT	3411015005HO-DI	$49.00
				3/4 CC	3411015075HB-DI	$49.00
				3/4 NPT	3411015075HC-DI	$49.00
				1 CC	3411015100HD-DI	$49.00
				1 NPT	3411015100HE-DI	$49.00
2 1/4 - 2 1/2	55 - 65	2.44 - 2.91	62 - 74	1/2 NPT	3411025005HO-DI	$56.00
				3/4 CC	3411025075HB-DI	$56.00
				3/4 NPT	3411025075HC-DI	$56.00
				1 CC	3411025100HD-DI	$56.00
				1 NPT	3411025100HE-DI	$56.00
				1 1/4 CC	3411025125HF-DI	$70.70
				1 1/4 NPT	3411025125HG-DI	$70.70
				1 1/2 CC	3411025150HH-DI	$70.70
				1 1/2 NPT	3411025150HI-DI	$70.70
2A	50	2.38	61	1/2 NPT	341102A005HO-DI	$52.70
				3/4 CC	341102A075HB-DI	$52.70
				3/4 NPT	341102A075HC-DI	$52.70
				1 CC	341102A100HD-DI	$52.70
				1 NPT	341102A100HE-DI	$52.70
2B	50	2.35 - 2.56	60 - 65	1/2 NPT	341102B005HO-DI	$52.70
				3/4 CC	341102B075HB-DI	$52.70
				3/4 NPT	341102B075HC-DI	$52.70
				1 CC	341102B100HD-DI	$52.70
				1 NPT	341102B100HE-DI	$52.70
				1 1/4 CC	341102B125HF-DI	$69.10
				1 1/4 NPT	341102B125HG-DI	$69.10
				1 1/2 NPT	341102B150HI-DI	$69.10
3	80	2.97 - 3.54	75 - 90	1/2 NPT	3411030005HO-DI	$58.90
				3/4 CC	3411030075HB-DI	$58.90
				3/4 NPT	3411030075HC-DI	$58.90
				1 CC	3411030100HD-DI	$58.90
				1 NPT	3411030100HE-DI	$58.90
				1 1/4 CC	3411030125HF-DI	$75.40
				1 1/4 NPT	3411030125HG-DI	$75.40
				1 1/2 CC	3411030125HH-DI	$75.40
				1 1/2 NPT	3411030125HI-DI	$75.40
3-4	80 - 100	3.74 - 4.55	95 - 116	1/2 NPT	3411034005HO-DI	$67.00
				3/4 CC	3411034075HB-DI	$67.00
				3/4 NPT	3411034075HC-DI	$67.00
				1 CC	3411034100HD-DI	$67.00
				1 NPT	3411034100HE-DI	$67.00
				1 1/4 CC	3411034125HF-DI	$90.70
				1 1/4 NPT	3411034125HG-DI	$90.70
				1 1/2 CC	3411034150HH-DI	$90.70
				1 1/2 NPT	3411034150HI-DI	$90.70
				2 CC	3411034200HJ-DI	$90.70
				2 NPT	3411034200HK-DI	$90.70
4-5	100 - 125	4.74 - 5.63	120 - 143	1/2 NPT	3411040005HO-DI	$69.70
				3/4 CC	3411040075HB-DI	$69.70
				3/4 NPT	3411040075HC-DI	$69.70
				1 CC	3411040100HD-DI	$69.70
				1 NPT	3411040100HE-DI	$69.70
				1 1/4 CC	3411040125HF-DI	$94.90
				1 1/4 NPT	3411040125HG-DI	$94.90
				1 1/2 CC	3411040150HH-DI	$94.90
				1 1/2 NPT	3411040150HI-DI	$94.90
				2 CC	3411040200HJ-DI	$94.90
				2 NPT	3411040200HK-DI	$94.90
5-6	125 - 150	5.94 - 6.70	151 - 170	1/2 NPT	3411050005HO-DI	$75.70
				3/4 CC	3411050075HB-DI	$75.70
				3/4 NPT	3411050075HC-DI	$75.70
				1 CC	3411050100HD-DI	$75.70
				1 NPT	3411050100HE-DI	$75.70
				1 1/4 CC	3411050125HF-DI	$105.50
				1 1/4 NPT	3411050125HG-DI	$105.50
				1 1/2 CC	3411050150HH-DI	$105.50
				1 1/2 NPT	3411050150HI-DI	$105.50
				2 CC	3411050200HJ-DI	$105.50
				2 NPT	3411050200HK-DI	$105.50
6 - 8	150 - 200	7.69 - 8.72	195 - 22	1/2 NPT	3411068005HO-DI	$91.60
				3/4 CC	3411068075HB-DI	$91.60
				3/4 NPT	3411068075HC-DI	$91.60
				1 CC	3411068100HD-DI	$91.60
				1 NPT	3411068100HE-DI	$91.60
				1 1/4 CC	3411068125HF-DI	$124.50
				1 1/4 NPT	3411068125HG-DI	$124.50
				1 1/2 CC	3411068150HH-DI	$124.50
				1 1/2 NPT	3411068150HI-DI	$124.50
				2 CC	3411068200HJ-DI	$124.50
				2 NPT	3411068200HK-DI	$124.50
6	150	6.84-7.60	174 - 193	1/2 NPT	341106B005HO-DI	$80.90
				3/4 CC	341106B075HB-DI	$80.90
				3/4 NPT	341106B075HC-DI	$80.90
				1 CC	341106B100HD-DI	$80.90
				1 NPT	341106B100HE-DI	$80.90
				1 1/4 CC	341106B125HF-DI	$113.90
				1 1/4 NPT	341106B125HG-DI	$113.90
				1 1/2 CC	341106B150HH-DI	$113.90
				1 1/2 NPT	341106B150HI-DI	$113.90
				2 CC	341106B200HJ-DI	$113.90
				2 NPT	341106B200HK-DI	$113.90
8 - 10	200-250	8.54 - 10.10	217 - 257	1/2 NPT	3411080005HO-DI	$97.10
				3/4 CC	3411080075HB-DI	$97.10
				3/4 NPT	3411080075HC-DI	$97.10
				1 CC	3411080100HD-DI	$97.10
				1 NPT	3411080100HE-DI	$97.10
				1 1/4 CC	3411080125HF-DI	$143.80
				1 1/4 NPT	3411080125HG-DI	$143.80
				1 1/2 CC	3411080150HH-DI	$143.80
				1 1/2 NPT	3411080150HI-DI	$143.80
				2 CC	3411080200HJ-DI	$143.80
				2 NPT	3411080200HK-DI	$143.80
10 - 12	250 -300	10.64 - 12.12	270-308	1/2 NPT	3411100005HO-DI	$113.10
				3/4 CC	3411100075HB-DI	$113.10
				3/4 NPT	3411100075HC-DI	$113.10
				1 CC	3411100100HD-DI	$113.10
				1 NPT	3411100100HE-DI	$113.10
				1 1/4 CC	3411100125HF-DI	$173.70
				1 1/4 NPT	3411100125HG-DI	$173.70
				1 1/2 CC	3411100150HH-DI	$173.70
				1 1/2 NPT	3411100150HI-DI	$173.70
				2 CC	3411100200HJ-DI	$173.70
				2 NPT	3411100200HK-DI	$173.70
12 - 14	300 - 350	12.62 - 14.32	321 - 364	1/2 NPT	3411120005HO-DI	$121.60
				3/4 CC	3411120075HB-DI	$121.60
				3/4 NPT	3411120075HC-DI	$121.60
				1 CC	3411120100HD-DI	$121.60
				1 NPT	3411120100HE-DI	$121.60
				1 1/4 CC	3411120125HF-DI	$176.90
				1 1/4 NPT	3411120125HG-DI	$176.90
				1 1/2 CC	3411120150HH-DI	$176.90
				1 1/2 NPT	3411120150HI-DI	$176.90
				2 CC	3411120200HJ-DI	$176.90
				2 NPT	3411120200HK-DI	$176.90
